Dunlop tire tread

Somehow i'd have to make this tread for the tires. Custom carving tool has to be made or some other method figured out for that.

Dunlop tires

Found a way making the tires. Material used is hi dense styrofoam. After sanding with 400 grit sandpaper the texture is spot on. It will have to be painted and for that I'm using PVA glue and water based paint mixture. PVA also protects the soft styrofoam surface from scratches.

Carbon Ceramic brake disc

Here is my attempt to replicate carbon ceramic surface for the brake disc.

Here is an interesting video of how carbon ceramic brakes are made:

Finished brake caliper

Came out pretty good I think.

Alclad 2 polished aluminum

Front left wheel is done and rear left is one step behind. Materials used: gray primer, gloss black, polished aluminum and aqua gloss clear. All above from Alclad2.

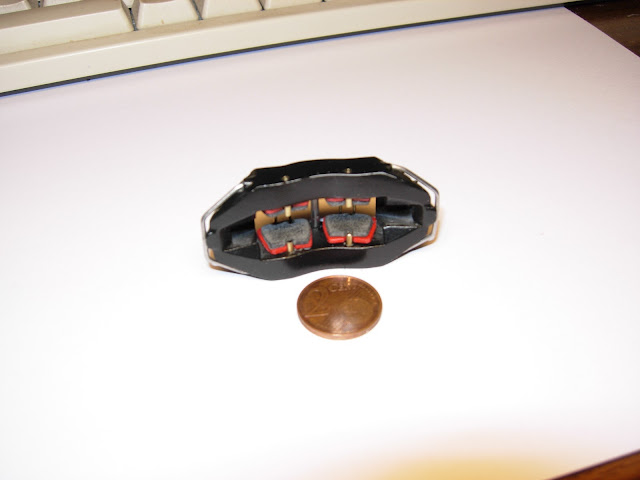

8 piston Brake cliper

Nearly finished

If anyone wants detailed drawings for brakes, you can find some here: Brembo Racing Products



Brembo carbon ceramic brakes

Aero-X has Brembo brakes with 380mm carbon brake discs all round. This model will

not be any different.

Finishing the fabrication of the wheel

Very time consuming task to finish off the spokes one by one.

Aero-X wheels

Slightly trimmed and modified body

Aero-X body

First copy from the mould

Master body

1/6 Styrofoam base

Saab Aero-X and the designer Anthony Lo
